Hydraulic Color Steel Corrugated And Trapezoidal Roofing Sheet Metal Roll Forming Machines
1.Feature of the glazed tile roof machine
The components of the glazed tile roof roll forming machine include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.Equipment features: glazed tile roof roll forming machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
2. Brief of our company
Our company are professional product the roof roll forming machine manufacture , We manufacture nd supply various of cold roll forming machines in China, such as trapezoidal roofing sheet roll forming machine ,corrugated roofing roll forming machine ,glazed tile roll forming machine and double layer roofing sheet roll forming machine ,ridge cap roll forming machine and so on , our machine export all over the world like india.south africa.pakistan.Brazil .omen and so no , the color steel roof roll forming machine raw material thickness 0.3mm-0.8mm, we also can make other metal roofing sheet roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first.
3. Specification of the roll forming machine
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | As ur need |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 11 stations |
| 4 | Shaft Diameter | 70 mm |
| 5 | Productivity | 30-35 m/min |
| 6 | Rollers' material | 45# with 0.05mm chrome |
| 7 | Shaft material | 45# with 0.05mm chrome |
| 8 | Weight | 6.5 ton |
| 9 | length | 6.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 Tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
4. More details of the roll forming machine
(1) Hydraulic Ue-coiler
Un-power: manual de-coiler; Max. Capacity: 7T
Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm
Manual power expands the coil inner surface.
(2) Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
(3) Hydraulic station
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese famous brand products.
4) Hydraulic motor power: 3KW
(4) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)

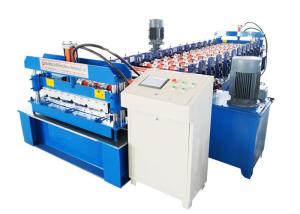

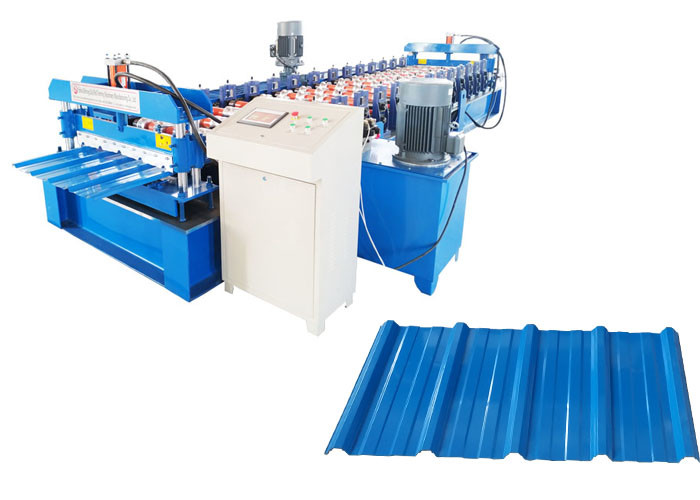

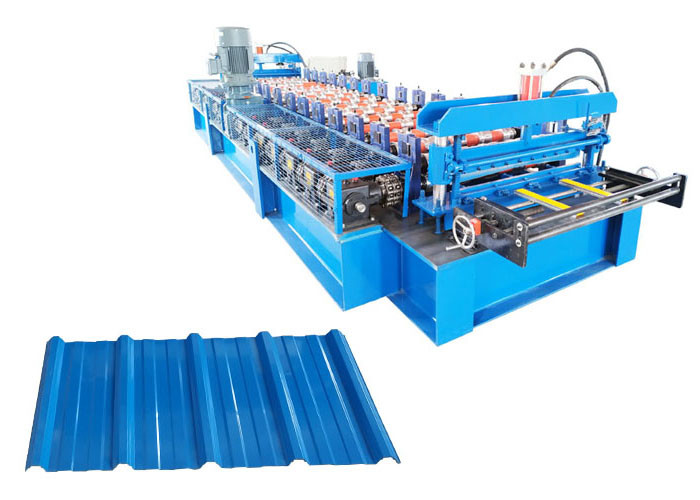

5. Machine picture for your reference
